УФ-датчики Far UV Sensor GFUV-T10GD-L

Parameter

Symbol

Min.

Max.

Unit

Remark

Storage Temperature

T_st

-40

90

℃

Operating Temperature

T_op

-30

85

℃

Reverse Voltage

V_{r, max.}

2

V

Forward Current

I_f,max.

1

㎃

Optical Source Power Range

P_opt

0.1m

100m

W/㎠

Excimer Lamp

Soldering Temperature

T_sol

260

℃

within 10 sec.

Notice: apply to us in the case that Optical Source Power is over 100,000 W/㎠

Characteristics (at 25℃)

Parameter

Symbol

Min.

Typ.

Max.

Unit

Test Conditions

Dark Current

I_d

100

pA

Vr = 1 V

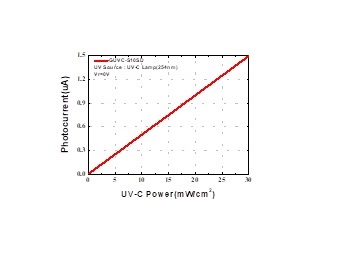

Photo Current

I_ph

45

50

55

㎁

222nm peak
FUV Lamp,1㎽/㎠

2,12

2,35

2,58

㎁

172nm peak
VUV Lamp,1㎽/㎠

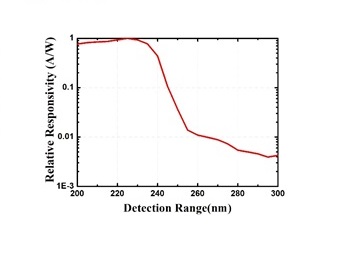

Spectral Detection range

λ

245

nm

Active area

1,536

㎟
